TWX Laser Auto Level DSF32L
    Publish time 2026-01-29 13:29

The laser automatic level is also a new product, featuring a laser transmitter added to the common auto level.

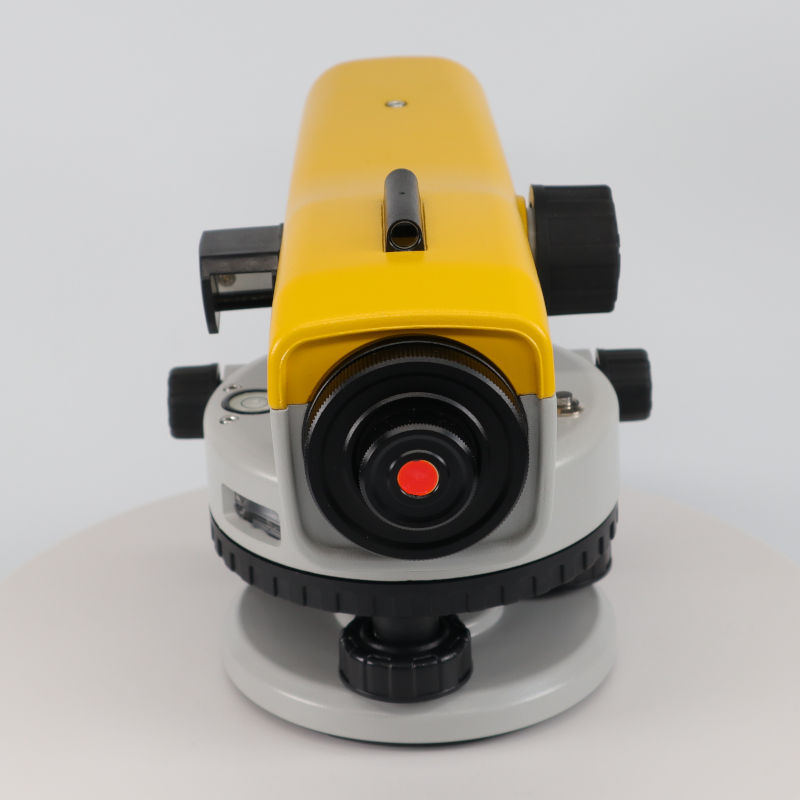

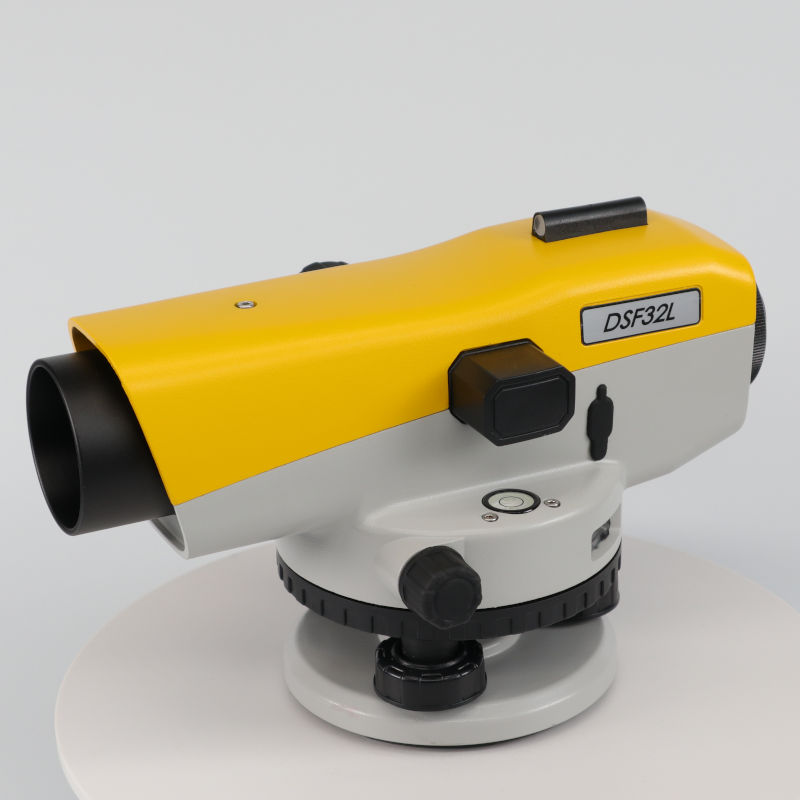

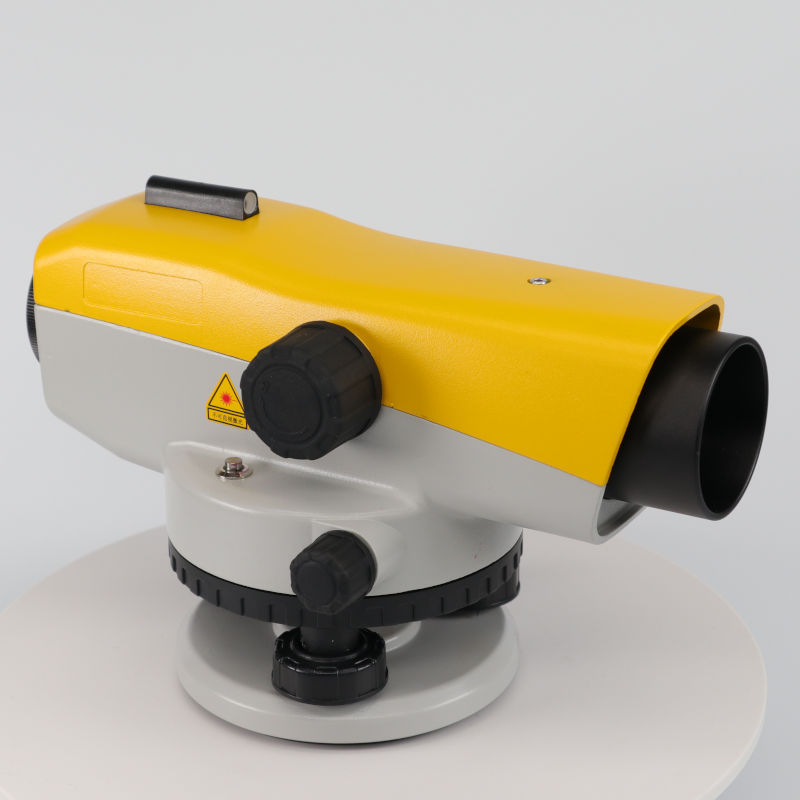

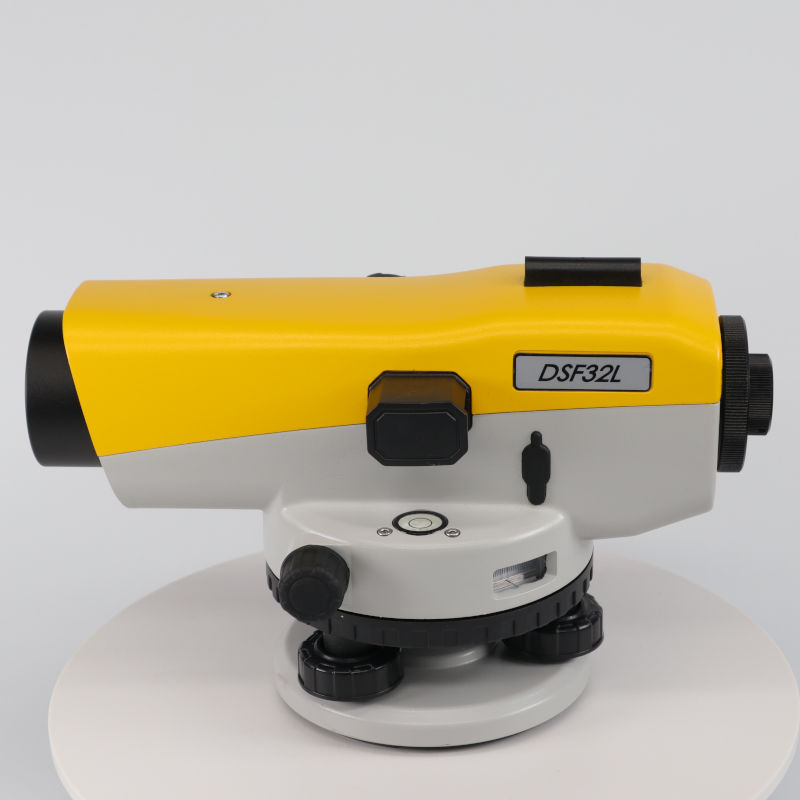

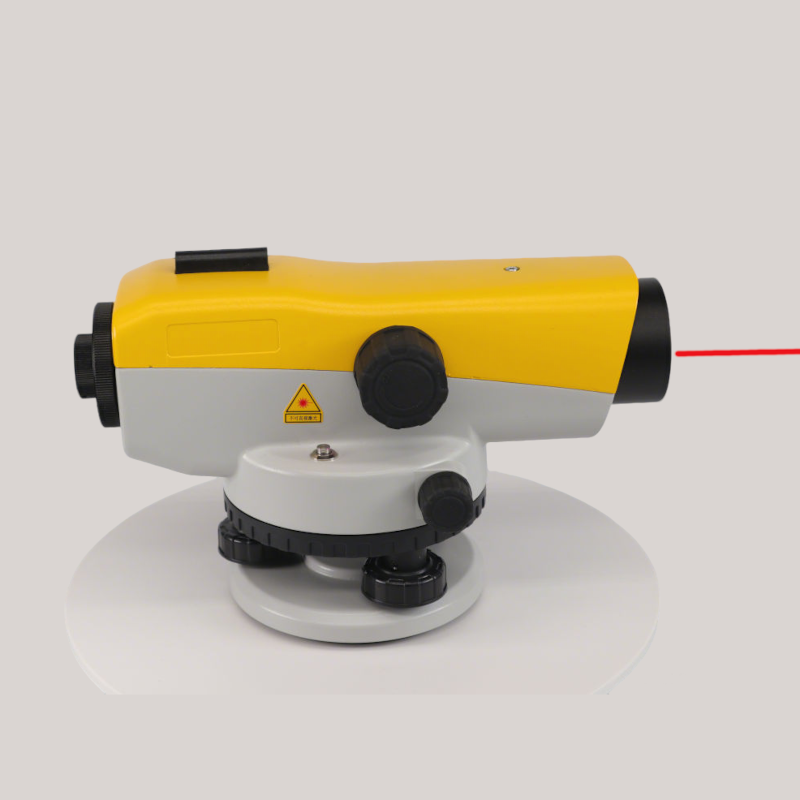

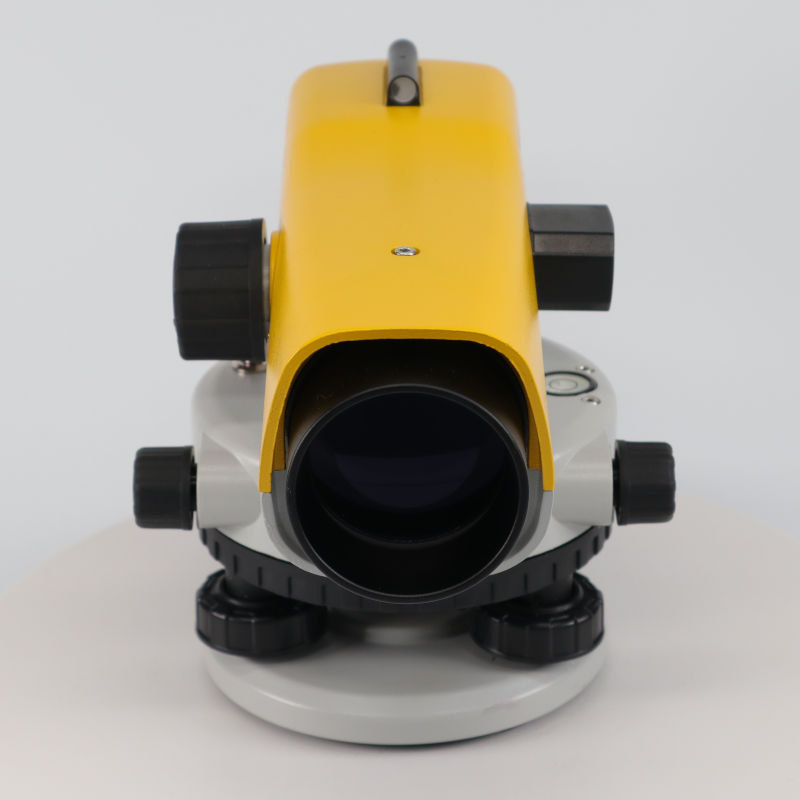

TWX Laser Auto Level DSF32L

The laser automatic level is also a new product, featuring a laser transmitter added to a common auto level. Data can be read via the laser dot on the leveling rod, making it suitable for use in low-light working environments. It can also be used for tasks such as positioning and staking out.

Model:DSF32L
Magnification32X
CompensatorMagnetic Damping Compensator
ImageErect
Objective Aperture42mm
Field Of View1°20′
Minimum Focusing Distance0.4m
Stadia Ratio100
Setting Accuracy± 0.3″
Compensating Range±15′
1km Double Run Leveling±1mm
Circular Level Sensitivity8’/2mm
Horizontal Circle Graduation1° or 1gon
Laser
Wave lengthred laser 635nm
Effective range200m (at night)
Laser spot5mm/100m
Spot center and the deviation of the visual axis<=5″
