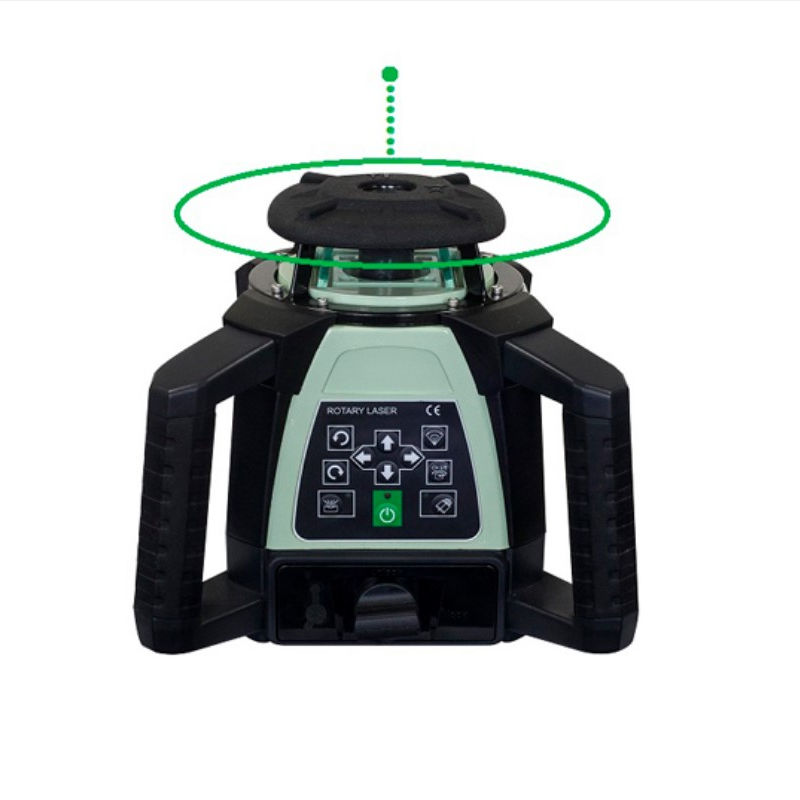

TWX Rotary Laser LS818-G
    Publish time 2026-01-20 15:23

High precision Rotary laser, green laser beam or red are optional.

TWX Rotary Laser LS818-G



Feature:

  • Fully automatic leveling

  • Electronic vials and positioning motors

  • Controlled by temperature-stables sensors for auto alignment

  • Reliable and easy to operate

  • High quality with reasonable price




Model NoLS818-G
Auto level accuracy
Horizontal：±15”  Vertical：±20”
Down point accuracy
≤±1mm/1.5M
Output power
≤1mW，class II
Laser wave
520nm green beam
Auto level range
±5°
Working range with receiver（dia）
1000M
Remote control distance
25M
Slope range
±5°
Scanning speed0r.p.m./60r.p.m./120r.p.m./300r.p.m./600r.p.m.（adjustable）
Scanning width
0.10°.45°.90°.180°（adjustable）
Power
DC4.8-6V（N-H rechargeable battery x 4）
Time in continous use
15 hours（N-H rechargeable battery x 4）
Working temperature
-20℃~+50℃
Dust proof and Splash-proof
IP54
Dimensions（LxWxH）MM
160（L）x160（W）x185（H）mm
Net Weight（kgs）
3.0kgs include batteries
Gross Weight（kgs）
6.0kgs

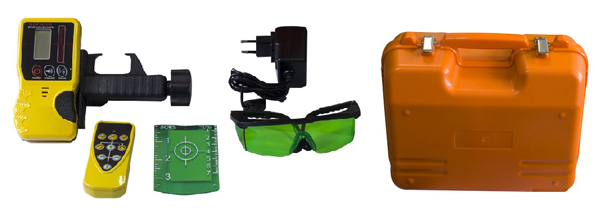

Accessories
Remote controller x 1, Detector with clamp X 1, Rechargeable battery x 4, Charger x 1, Instruction manual x 1, Plastic carrying case x 1
