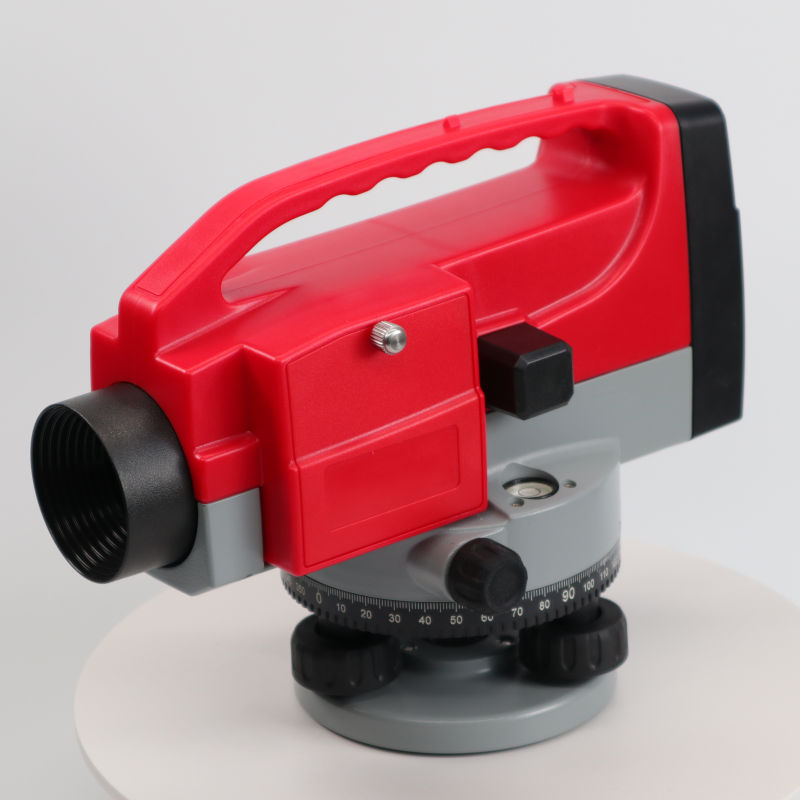

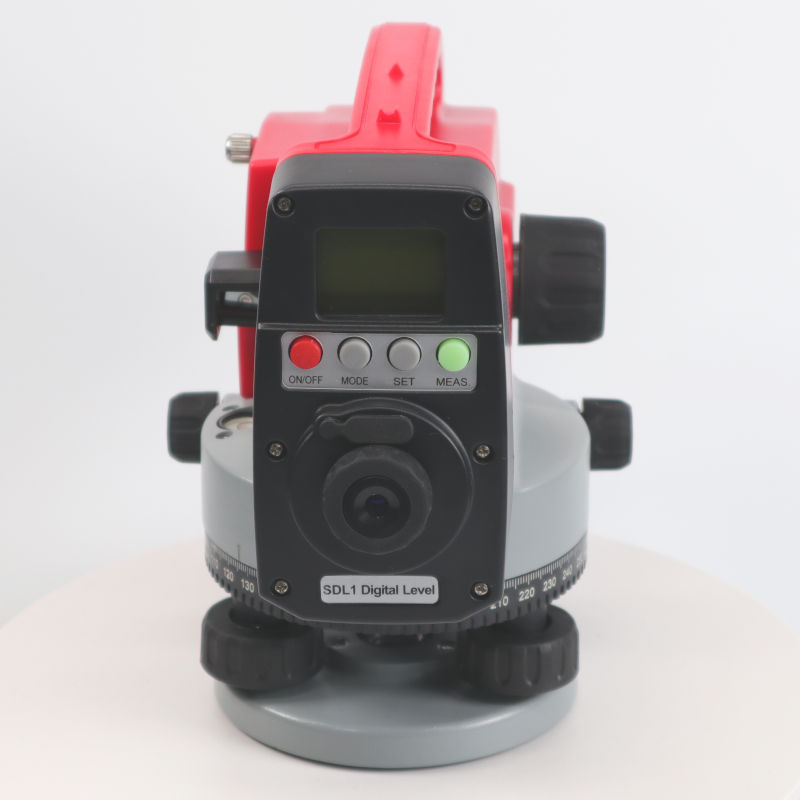

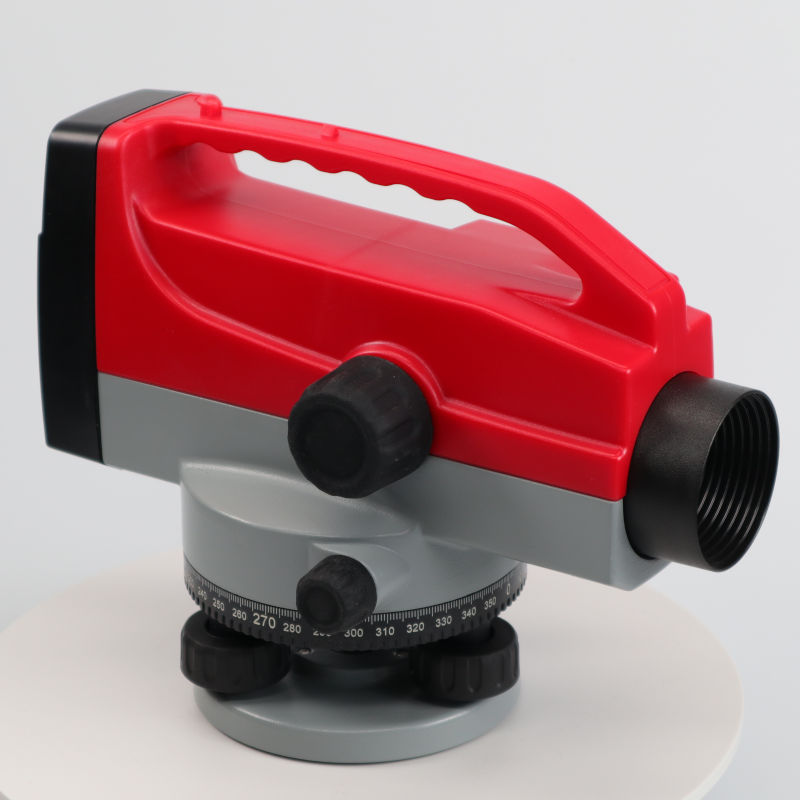

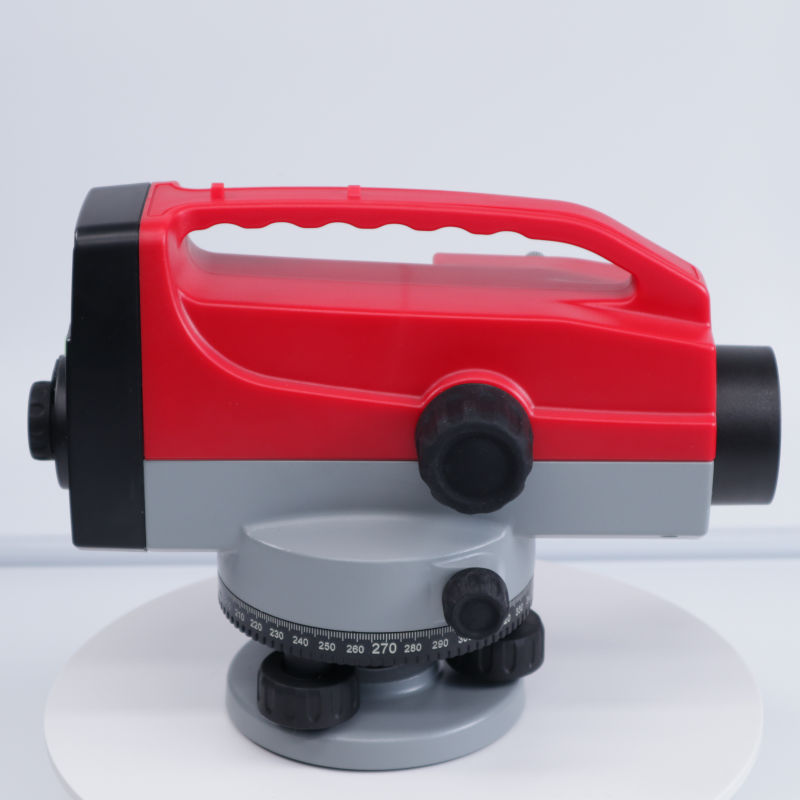

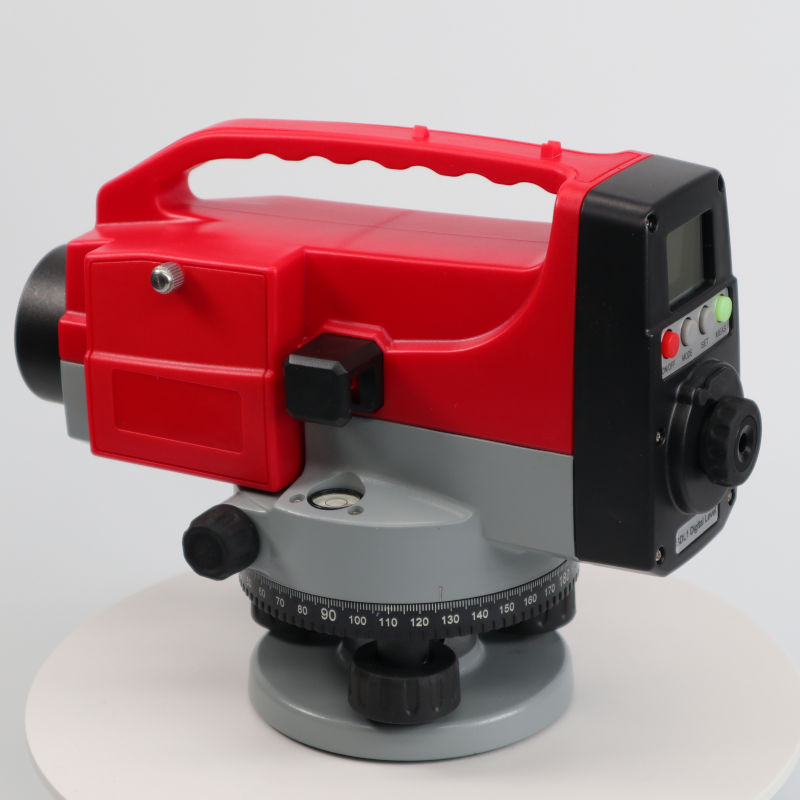

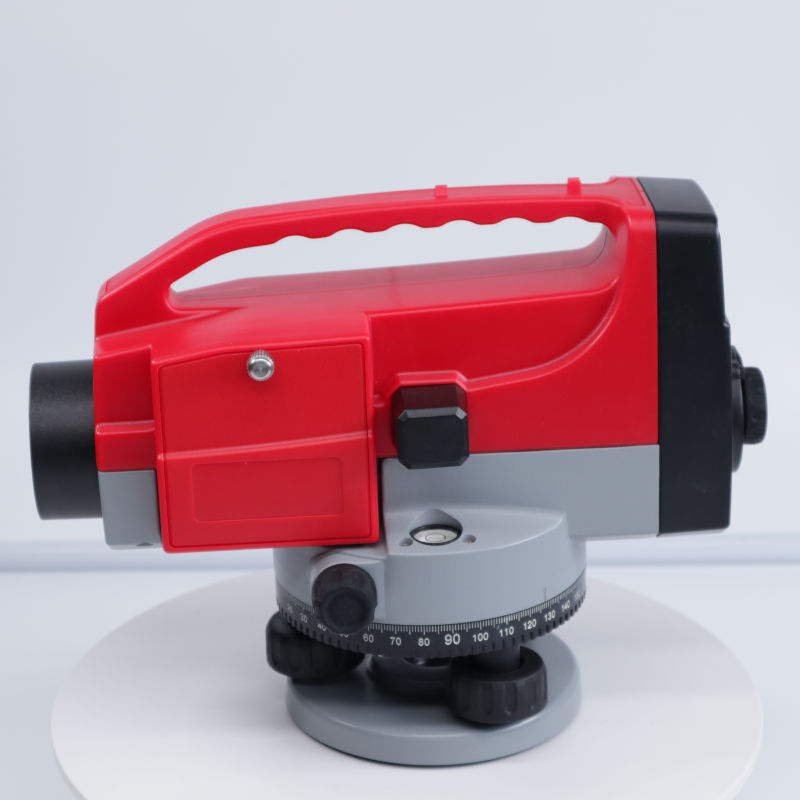

TWX Digital Auto Level DL1
    Publish time 2026-01-29 12:36

The digital auto level DL1 is a new product, it has the same function as the normal auto level, further more it can work with a dedicated barcode leveling rod, reading the leveling rod by electronic way, it is easy to operate, saving working time, it's a good choice for your surveying job.

TWX Digital Auto Level DL1
Model
DL1
Magnification
32X
Erect
Standard Deviation on 1km of Double LevelingElectronic measurement±0.7mm/km

Visual Measurement±1.2mm/km
Measuring Range
3m~120m
Minimum Displayed ValueElevation0.0001m

Distance0.001m
Measuring Time
<3”
Graduation of Horizontal Circle
360°
TelescopeResolving power3”

Field of View1°20’
CompensatorTypeMagnetic Damping

Compensation Range±15’

Setting Accuracy±0.3”
Circular Level Sensitivity
8’/2mm
Power supplyAlkaline battery4*AA 1.5v

Continuous working time>20 hours
Net Weight
1.8kgs
Waterproof grade
IP65
Working temperature
-20°C ~ +50°C
