Laser Auto Level LZ AL32LA
    Publish time 2026-01-29 13:29

The laser automatic level is also a new product, featuring a laser transmitter added to the common auto level.

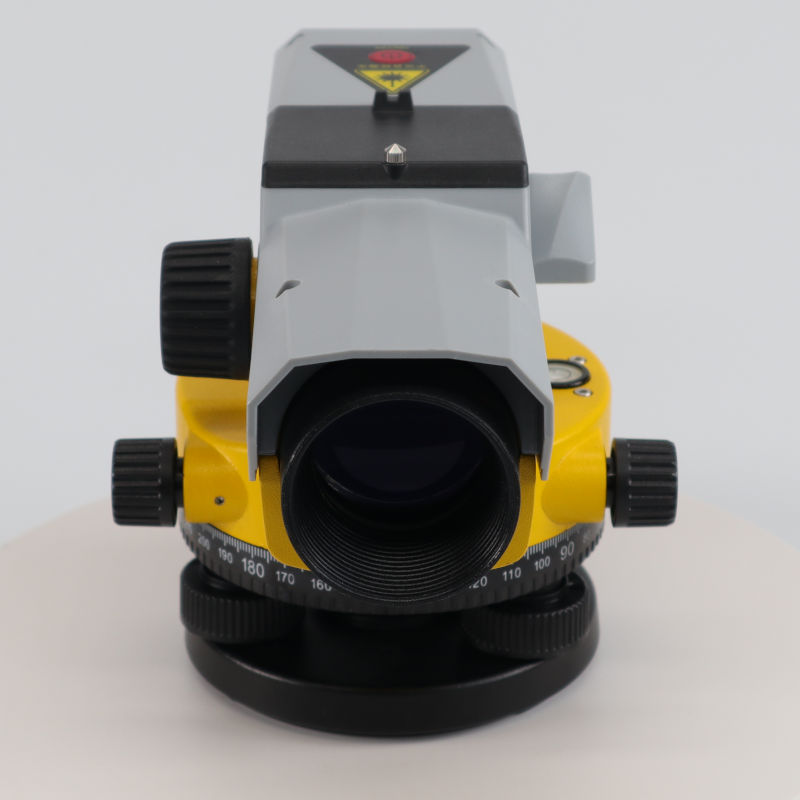

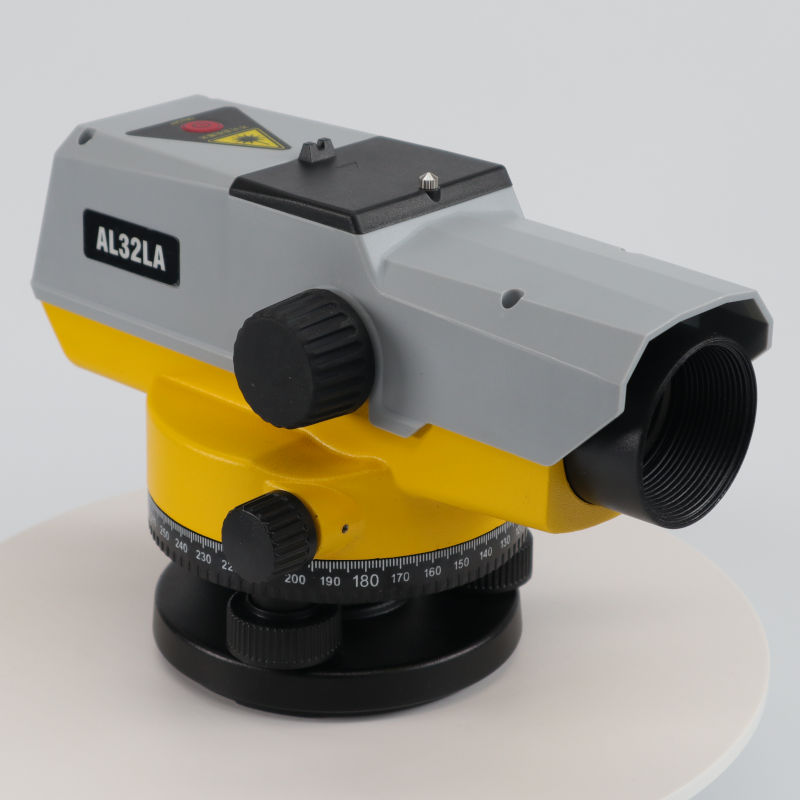

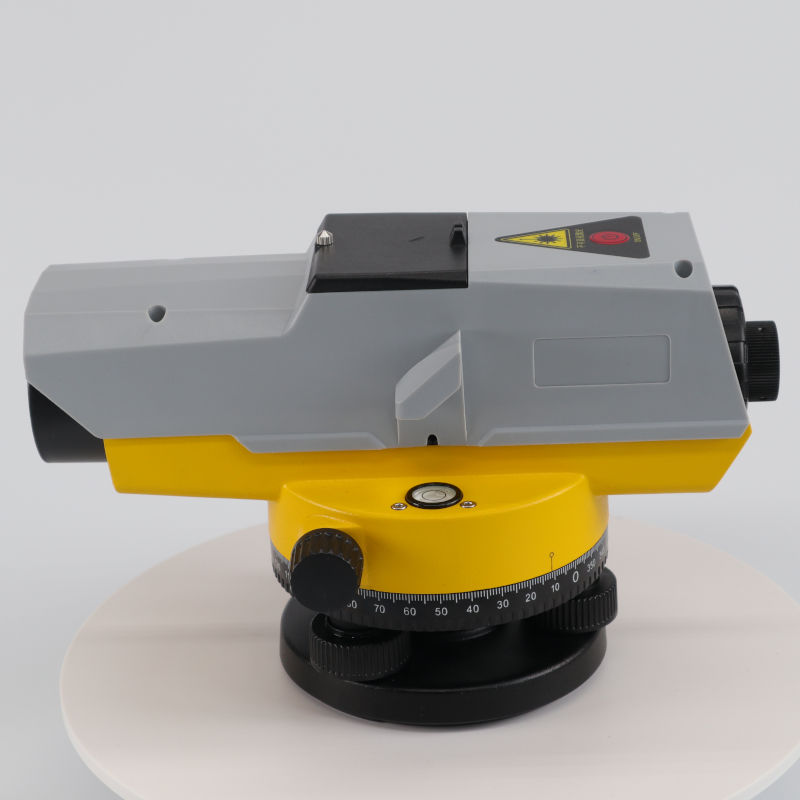

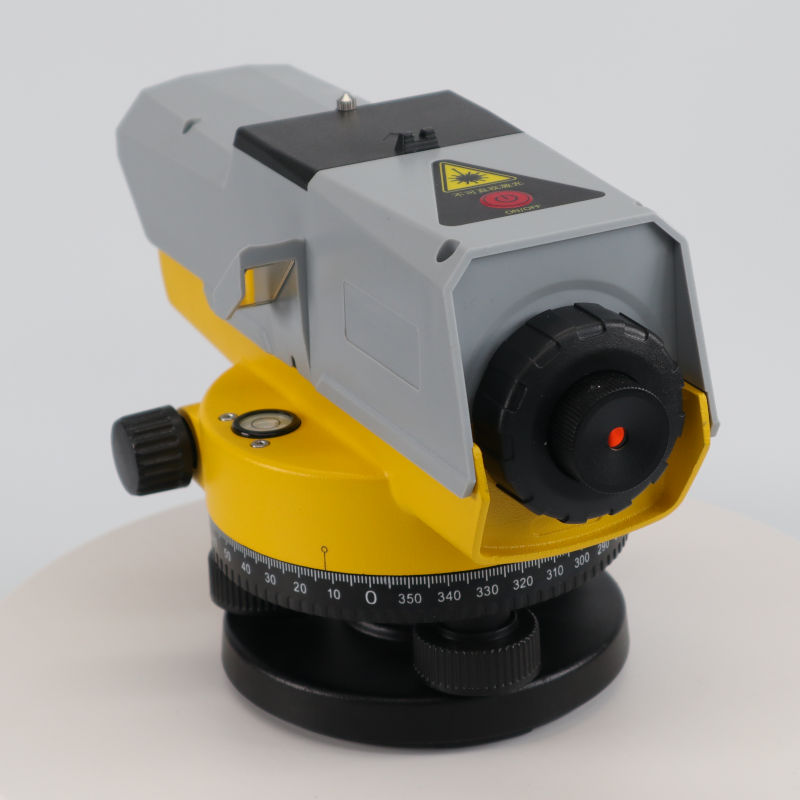

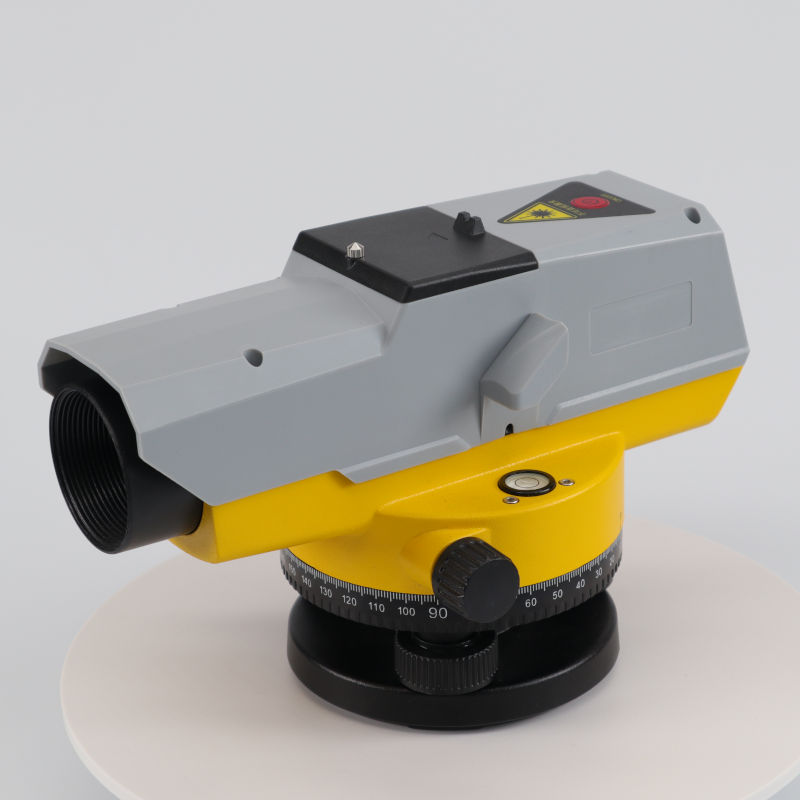

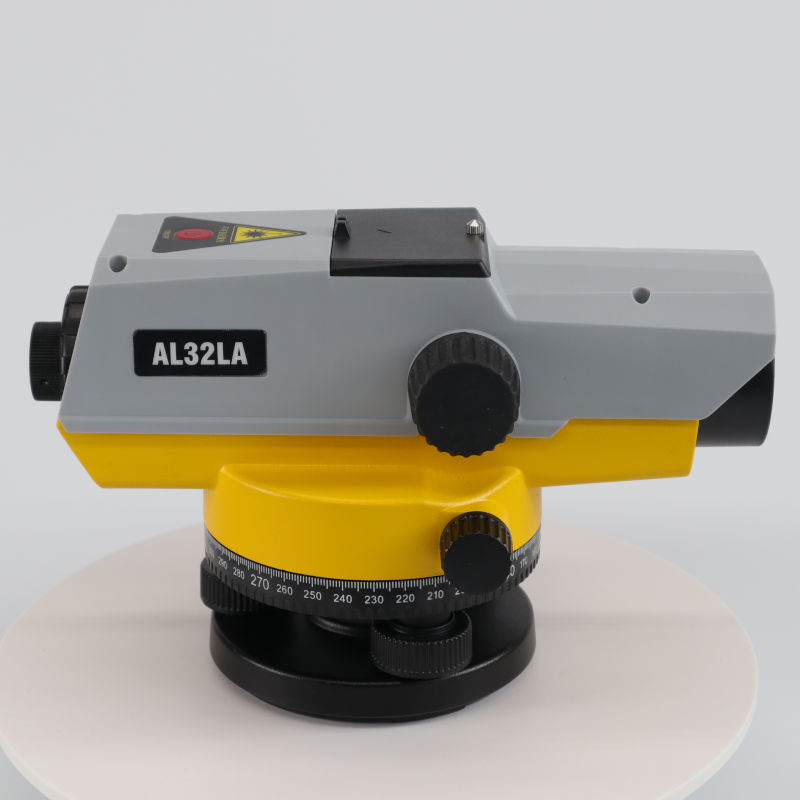

Laser Auto Level LZ AL32LA

The laser automatic level is also a new product, featuring a laser transmitter added to a common auto level. Data can be read via the laser dot on the leveling rod, making it suitable for use in low-light working environments. It can also be used for tasks such as positioning and staking out.

Model:AL32LA
Magnification32X
CompensatorMagnetic Damping Compensator
ImageErect
Objective Aperture36mm
Field Of View1°30′
Minimum Focusing Distance0.4m
Stadia Ratio100
Setting Accuracy±0.3″
Compensating Range±15′
1km Double Run Leveling±1.5mm
Circular Level Sensitivity8’/2mm
Horizontal Circle Graduation1° or 1gon
Laser Wave Length635nm
Laser Accuracy1mm
Laser Spot Size5mm/100m
Working Duration25 hours
Battery3*AAA
